Connecting to Machine Tools With Umati

Umati stands for Universal Machine Technology Interface. It was developed in 2017 and enables standardized, secure data transmission between machine tools and advanced systems like machine data platforms.

Human-machine interfaces (HMIs) are a hallmark of advanced platforms and have become more advanced, intuitive, and user-friendly in manufacturing environments. The dashboards used in HMIs are also available via tablets, PCs, display boards, and other systems, either remotely or throughout the facility.

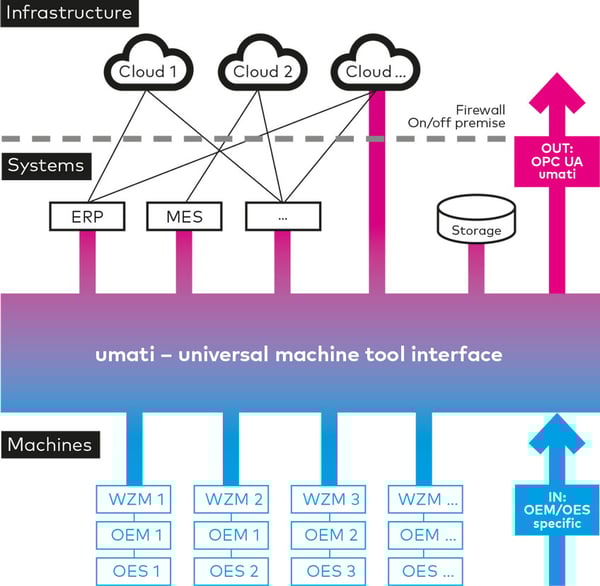

Umati's attempt to standardize interfaces means that systems can exchange data between machines and components more efficiently. It also allows users to integrate Umati interfaces into their IT system or cloud-based machine data platform.

Source: OPC Foundation

Traditionally, as OEMs developed automation capability within their equipment, many chose the route of closed-loop ecosystems to tie buyers to a single equipment brand. This path was more expensive and less effective as not every company could afford automation products within the OEM's offerings.

These systems were closed-loop, often with proprietary software. The equipment either couldn’t communicate with other systems or, if it did, it required additional IT support or programming.

As smart factories become the norm rather than the outlier, companies began to develop more advanced solutions to accommodate different OEMs, varied generations of machines, connections to robotics, sensor controls for single action tasks, and more.

With so many players and options in the machine automation space, a common language was needed. Advanced machine data platforms like MachineMetrics had already proven their value over traditional closed-loop ecosystems.

Umati was developed as an open-source development tool for creating standardized and secure interfaces. Standardized data exchange between systems meant that the power of cloud-based analytics could be realized across a factory without siloed data or proprietary automation controls preventing linkage to the machine data platform.

Umati is based on the Open Platform Communications User Architecture (OPC-UA), a robust communication platform developers use to enable communication between different industrial devices.

OPC-UA was developed to address machine automation advancements and improve system capabilities like advanced machine data platforms. The benefits of using OPC-UA as a companion to Umati programming and standardization include:

• Multi-platform compatibility
• Highly scalable across smart devices like sensors and actuators and back to mainframes
• Multi-threaded task operation so the communication stack can be ported to embedded devices
• Advanced security
• Configurable timeouts across every service
• Aggregating large data chunks

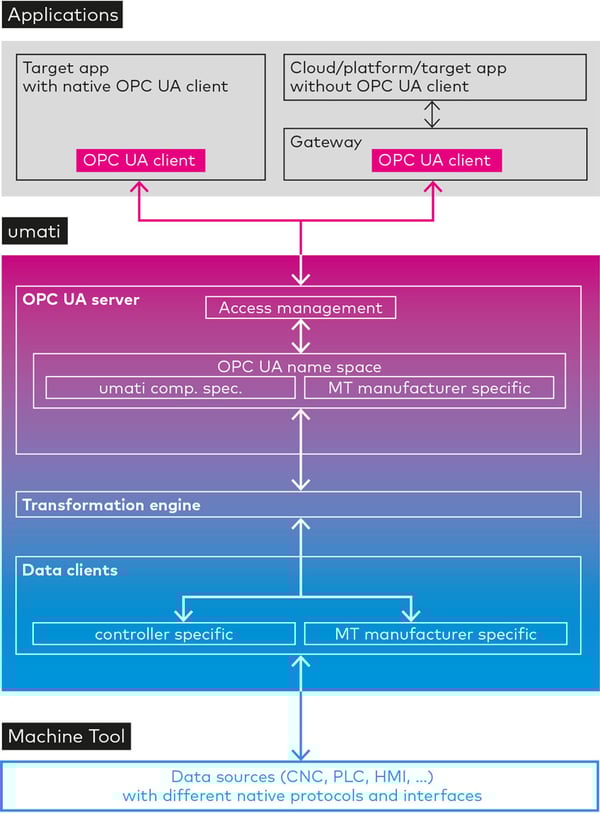

Umati developments are based on OPC-UA capabilities. However, Umati further enables specific mapping for both customers and manufacturers. It also uses a standardized configuration for the transformation of parameters.

Extensions of OPC-UA capabilities achieved by Umati include:

• Energy and material consumption data
• User interaction predictions
• Machine operating status
• Uniform machine identification
• Production order information
• Program progress information
• Error messaging and warnings

Source: OPC Foundation

Yes. Umati is an open-source tool and requires no license for development.

Umati is made up of many, many partners that include machine builders, software providers, and other key manufacturing industry professionals.

This working group "support the dissemination of OPC UA standards with a common implementation in the machinery industries."

As documented on the Umati website, there are several types of partners:

• Corporate Partners
• Core Partners
• Consortium Partners
• Association Partners
• Research Partners

Some of these partners include machine tool providers, such Citizen, Fanuc, Heidenhain, Mazak, Mitsubishi, and Okuma.

Every new industry converges toward standardization. From operating systems to common data transfer hardware like USBs, standardization enables innovation that triggers greater efficiency and use of resources.

The goal of Umati is to work toward a plug-and play-solution so interface components can be used across any industry and communication is standardized and recognizable among equipment. This goal allows for the development of stabilized processes within a manufacturing environment and a continuous flow throughout any production line, as components are interchangeable.

Umati interfaces enable seamless two-way communication that’s essential in today's machine data platforms to capture operator input and feedback. These interfaces can be identified explicitly as to machine location and their position utilized in automated workflows to deliver work instructions and customized information required by specific operators.

As device and interface manufacturers move to Umati, their products will have Umati built in. However, some equipment, like CNC machinery, may have standards like MTConnect embedded. In some cases, Umati may require a protocol adapter.

This is where a connectivity solution like MachineMetrics comes into play. MachineMetrics is a Machine Data Platform that enables connectivity to any make and model of equipment, including legacy machines as well as equipment that is not compatible with Umati.

MachineMetrics is the leading platform to collect, monitor, analyze, and drive action with manufacturing equipment data. Our platform easily captures data from your manufacturing equipment and provides a complete toolkit to drive actionable insights for frontline workers and other factory floor systems that improve the efficiency and quality of production.
